Tigre

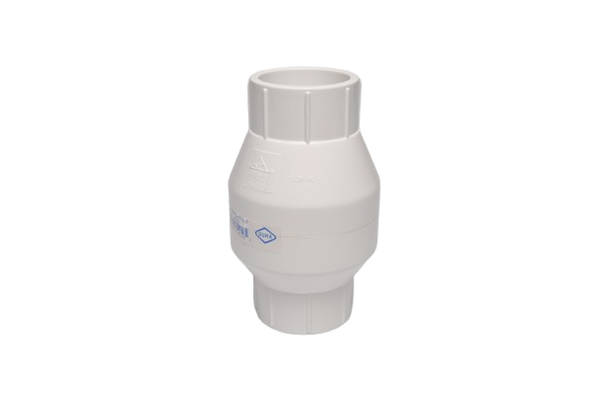

PVC In-Line Spring Check Valves with EPDM Seals
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
PVC In-Line Spring Check Valves with EPDM Seals
PVC In-Line Spring Check Valves with EPDM Seals provide automatic one-way flow control for compatible piping systems. These Tigre DuraPlastic S12 series valves feature PVC construction, spring-operated check mechanisms, EPDM seals, and a listed pressure rating of 150 PSI.
Available in nominal sizes from 3/4" through 2", these in-line valves allow flow in the intended direction while helping prevent reverse flow. They operate automatically in response to system pressure and flow conditions without requiring manual operation.
Product Highlights
- In-line spring check valve design
- Automatic one-way flow control
- Spring-operated check mechanism
- Helps prevent reverse flow
- PVC valve construction
- EPDM sealing components
- 150 PSI listed pressure rating
- Available in 3/4", 1", 1-1/4", 1-1/2", and 2"
- Nonmetallic valve body
- Tigre DuraPlastic S12 series
Available Sizes & Part Numbers
| Nominal Size | Manufacturer Part Number | SKU | Valve Type | Seal Material | Pressure Rating |
|---|---|---|---|---|---|
| 3/4" | S12-007 | 100027249 | In-Line Spring Check Valve | EPDM | 150 PSI |
| 1" | S12-010 | 100027250 | In-Line Spring Check Valve | EPDM | 150 PSI |
| 1-1/4" | S12-012 | 100027251 | In-Line Spring Check Valve | EPDM | 150 PSI |
| 1-1/2" | S12-015 | 100027252 | In-Line Spring Check Valve | EPDM | 150 PSI |
| 2" | S12-020 | 100027253 | In-Line Spring Check Valve | EPDM | 150 PSI |
Technical Specifications
| Product Type | In-Line Spring Check Valve |
|---|---|
| Brand | Tigre DuraPlastic |
| Manufacturer Series | S12 |
| Body Material | PVC |
| Valve Mechanism | Spring-Operated Check |
| Valve Function | One-Way Flow Control |
| Seal Material | EPDM |
| Operation | Automatic |
| Configuration | In-Line |
| Available Nominal Sizes | 3/4", 1", 1-1/4", 1-1/2", 2" |
| Listed Pressure Rating | 150 PSI |
| Product Family | Valves |
Product Details
3/4" PVC In-Line Spring Check Valve
S12-007 | SKU 100027249
This 3/4" in-line spring check valve features PVC construction, EPDM seals, and a listed pressure rating of 150 PSI. The spring-operated mechanism provides automatic one-way flow control.
1" PVC In-Line Spring Check Valve
S12-010 | SKU 100027250
This 1" in-line spring check valve features PVC construction, EPDM seals, and a listed pressure rating of 150 PSI. It is designed to permit forward flow while resisting reverse flow.
1-1/4" PVC In-Line Spring Check Valve
S12-012 | SKU 100027251
This 1-1/4" in-line spring check valve features PVC construction, EPDM seals, and a listed pressure rating of 150 PSI. Its spring-operated mechanism responds automatically to system flow and pressure conditions.
1-1/2" PVC In-Line Spring Check Valve
S12-015 | SKU 100027252
This 1-1/2" in-line spring check valve features PVC construction, EPDM seals, and a listed pressure rating of 150 PSI. The valve helps prevent reverse flow in compatible piping systems.
2" PVC In-Line Spring Check Valve
S12-020 | SKU 100027253
This 2" in-line spring check valve features PVC construction, EPDM seals, and a listed pressure rating of 150 PSI. The automatic check mechanism allows one-way flow without manual actuation.
Spring-Operated Check Mechanism
The internal spring assists closure when forward flow decreases or reverse pressure develops. Valve opening depends on the pressure differential across the check mechanism.
Reverse Flow Prevention
These check valves are designed to allow flow in one direction and resist flow in the opposite direction. They are not substitutes for positive shutoff valves where manual system isolation is required.
PVC Construction
PVC provides nonmetallic valve construction for compatible piping applications. Confirm the intended fluid, operating temperature, and system pressure before installation.
EPDM Seals
All five sizes use EPDM sealing components. Verify compatibility with the intended fluid, chemical concentration, temperature, and operating conditions.
150 PSI Pressure Rating
All five models have a listed pressure rating of 150 PSI. Review the manufacturer's documentation for temperature-related pressure limitations and other service restrictions.
In-Line Installation
The S12 series uses an in-line valve configuration. Install the valve in the manufacturer's specified flow direction and follow the applicable connection and orientation requirements.
Automatic Operation
Unlike a manual ball valve, a spring check valve responds automatically to changes in flow and differential pressure. No handle operation is required.
Product Resources & Support
Review the manufacturer's valve specification sheet for additional technical information. Need help selecting the correct in-line spring check valve size or confirming PVC and EPDM compatibility? The GetPipe.com team can assist with product identification and selection.
Frequently Asked Questions
What type of valves are these?
These are Tigre DuraPlastic S12 series PVC in-line spring check valves with EPDM seals.
What sizes are available?
The available nominal sizes are 3/4", 1", 1-1/4", 1-1/2", and 2".
What is the 3/4" valve part number?
The 3/4" valve is S12-007, SKU 100027249.
What is the 1" valve part number?
The 1" valve is S12-010, SKU 100027250.
What is the 1-1/4" valve part number?
The 1-1/4" valve is S12-012, SKU 100027251.
What is the 1-1/2" valve part number?
The 1-1/2" valve is S12-015, SKU 100027252.
What is the 2" valve part number?
The 2" valve is S12-020, SKU 100027253.
How does an in-line spring check valve work?
Forward pressure opens the check mechanism when sufficient differential pressure is present. The spring assists closure when forward flow decreases or reverse pressure develops.
What is the purpose of a spring check valve?
A spring check valve allows flow in one direction and helps prevent reverse flow through the piping system.
Do these valves require manual operation?
No. These valves operate automatically in response to flow and pressure conditions.
Are these ball valves?
No. These are spring-operated check valves, not manual ball valves.
Are these the same as the S13 spring check foot valves?
No. These products belong to the S12 in-line spring check valve series, rather than the S13 in-line spring check foot valve series.
What material are these valves made from?
These valves feature PVC construction.
What type of seals do they use?
All five sizes use EPDM seals.
What is the pressure rating?
All five sizes have a listed pressure rating of 150 PSI. Review the manufacturer's specifications for service limitations.
Can these valves be installed in any direction?
Installation orientation and flow direction must follow the manufacturer's instructions. Confirm the permitted mounting positions before installation.
Are these suitable for chemical service?
Suitability depends on compatibility with PVC and EPDM, along with the fluid concentration, operating temperature, pressure, and other service conditions.
Can these valves replace a manual shutoff valve?
No. Spring check valves operate automatically and should not replace a positive shutoff valve when manual isolation is required.
Where can I find technical documentation?
The manufacturer's Valves Specification Sheet is available in the Product Resources & Support section above.
Important Ordering Notes
This listing covers five PVC In-Line Spring Check Valves with EPDM Seals: S12-007 (SKU 100027249), 3/4"; S12-010 (SKU 100027250), 1"; S12-012 (SKU 100027251), 1-1/4"; S12-015 (SKU 100027252), 1-1/2"; and S12-020 (SKU 100027253), 2". All five have a listed pressure rating of 150 PSI. These are automatic spring check valves, not manual ball valves or S13 check foot valves. Confirm nominal size, piping connections, flow direction, installation orientation, material compatibility, and operating conditions before purchase.
