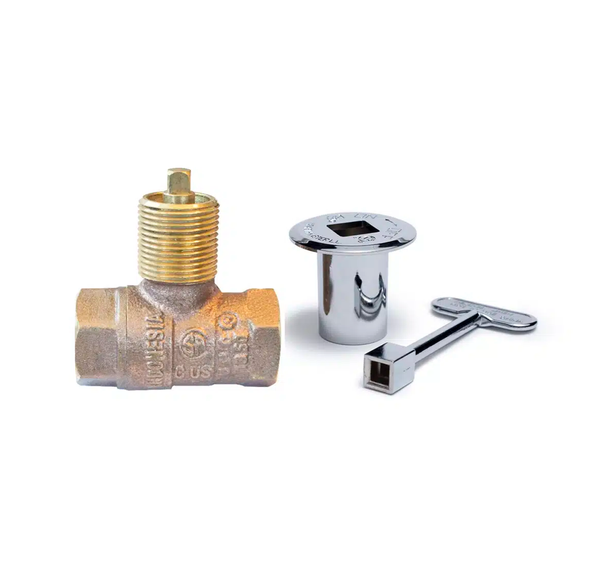

Pro-Flex HearthMaster Straight Keyed Gas Valve Kit with Flange & Key
- Availability:
- Usually Ships in 5-7 Business Days
- Weight:
- 0.00 LBS
Description
Pro-Flex HearthMaster Straight Keyed Gas Valve Kit with Flange & Key
Pro-Flex HearthMaster Straight Keyed Gas Valve Kits provide a complete valve assembly for controlling fuel gas to fireplaces, gas logs, log lighters, and other applications requiring a similar keyed gas valve. Each kit includes a straight keyed gas valve, plated zinc flange, and 3-1/2" plated zinc key.
Choose from 1/2" or 3/4" valve sizes and Chrome, Black, or Brushed Nickel finishes. The valve features a brass body, chrome-plated brass ball, and P.T.F.E. seats and is approved for Natural Gas and Propane Gas.
Product Highlights
- Pro-Flex HearthMaster Straight Keyed Gas Valve Kit
- Straight valve configuration
- For fireplaces, gas logs, log lighters, and similar fuel gas applications
- Available in 1/2" and 3/4" sizes
- Chrome, Black, and Brushed Nickel finish options
- Includes straight keyed valve, plated zinc flange, and 3-1/2" plated zinc key
- Brass valve body
- Chrome-plated brass ball
- P.T.F.E. valve seats
- Approved for Natural Gas and Propane Gas
- Maximum working pressure: 1/2 PSIG
- Maximum testing pressure: 10 PSI
- Straight valve rating: 350,000 BTU/hr @ 1/2 PSIG
- Temperature rating: 32°F to 125°F
- CSA certified
- Manufactured in compliance with ANSI Z21.15-09
- UPC listed
Technical Specifications
| Manufacturer | Pro-Flex |
|---|---|
| Product Line | HearthMaster |
| Product Type | Straight Keyed Gas Valve Kit |
| Applications | Fireplaces, Gas Logs, Log Lighters, and Similar Fuel Gas Applications |
| Valve Body | Brass |
| Ball | Chrome-Plated Brass |
| Seats | Polytetrafluoroethylene (P.T.F.E.) |
| Key | Plated Zinc |
| Flange | Plated Zinc |
| Key Length | 3-1/2" |
| Valve Stem | 5/16" Square |
| Approved Gases | Natural Gas & Propane Gas |
| Maximum Working Pressure | 1/2 PSIG |
| Maximum Testing Pressure | 10 PSI |
| Straight Valve Rating | 350,000 BTU/hr @ 1/2 PSIG |
| Temperature Rating | 32°F / 0°C to 125°F / 51.6°C |
| Certification | CSA Certified |
| Standard | ANSI Z21.15-09 |
| Listing | UPC Listed |
Available Sizes & Finishes
1/2" Straight Keyed Gas Valve Kits
- Chrome - PF-954
- Black - PF-954-KIC
- Brushed Nickel - PF-954-NIC
3/4" Straight Keyed Gas Valve Kits
- Chrome - PF-974
- Black - PF-974-K
- Brushed Nickel - PF-974-N
Finish Options
Chrome
Chrome plated zinc flange and matching plated zinc key.
Black
Black plated zinc flange and matching plated zinc key.
Brushed Nickel
Brushed nickel plated zinc flange and matching plated zinc key.
Complete Keyed Gas Valve Kit
Each HearthMaster kit includes:
- 1 straight keyed gas valve
- 1 plated zinc flange
- 1 matching 3-1/2" plated zinc key
Valve Construction
Valve Body & Ball
- Valve body: Brass
- Ball: Chrome-plated brass
- Valve stem: 5/16" square
Seats, Key & Flange
- Seats: P.T.F.E.
- Key: Plated zinc
- Flange: Plated zinc
Gas & Performance Ratings
Approved Gases
- Natural Gas
- Propane Gas
Performance Ratings
- Maximum working pressure: 1/2 PSIG
- Maximum testing pressure: 10 PSI
- Straight valve: 350,000 BTU/hr @ 1/2 PSIG
- Temperature range: 32°F to 125°F
Certifications & Standards
- CSA certified
- Manufactured in compliance with ANSI Z21.15-09
- UPC listed
Selecting the Correct Kit
Select the required Size and then choose the desired Finish. The available combinations are:
- 1/2" + Chrome
- 1/2" + Black
- 1/2" + Brushed Nickel
- 3/4" + Chrome
- 3/4" + Black
- 3/4" + Brushed Nickel
Installation
Product installation and system testing shall be performed in accordance with NFPA 54/ANSI Z223.1 (National Fuel Gas Code), applicable state and local codes, and the manufacturer's instructions.
Product Documents
Pro-Flex HearthMaster PF-952 & PF-954 Keyed Gas Valve Kit Spec Sheet
Review the manufacturer specification sheet for valve construction, approved gases, pressure and BTU ratings, temperature range, dimensions, certifications, and installation requirements.
Need Help Selecting a HearthMaster Valve Kit?
Our industrial PVF specialists can help confirm your required keyed gas valve size and finish before you order.
Frequently Asked Questions
What is the HearthMaster straight keyed gas valve kit used for?
Pro-Flex specifies these keyed gas valve kits for controlling fuel gas to fireplaces, gas logs, log lighters, and similar applications.
What comes with the kit?
Each kit includes a straight keyed gas valve, plated zinc flange, and 3-1/2" plated zinc key.
What gases are approved?
The manufacturer approves the valve for Natural Gas and Propane Gas.
What is the maximum working pressure?
The maximum working pressure is 1/2 PSIG.
What is the maximum testing pressure?
The maximum testing pressure is 10 PSI.
What is the BTU rating of the straight valve?
The straight version is rated for 350,000 BTU/hr at 1/2 PSIG.
What is the temperature range?
The manufacturer specifies a temperature rating of 32°F through 125°F.
What materials are used in the valve?
The valve features a brass body, chrome-plated brass ball, and P.T.F.E. seats.
How long is the included key?
The product-specific manufacturer sheet specifies a 3-1/2" plated zinc key.
What finishes are available?
Chrome, Black, and Brushed Nickel finishes are available.
Important Ordering & Installation Notes
- Select both Size and Finish before ordering.
- Available sizes: 1/2" and 3/4".
- Available finishes: Chrome, Black, and Brushed Nickel.
- Kit includes a straight keyed valve, flange, and 3-1/2" key.
- Maximum working pressure: 1/2 PSIG.
- Maximum testing pressure: 10 PSI.
- Straight valve rating: 350,000 BTU/hr @ 1/2 PSIG.
- Installation and testing must comply with applicable codes and manufacturer instructions.
