Normandy Solvent Weld SDR35 Threaded Tapped Bushing
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 0.00 LBS
Description

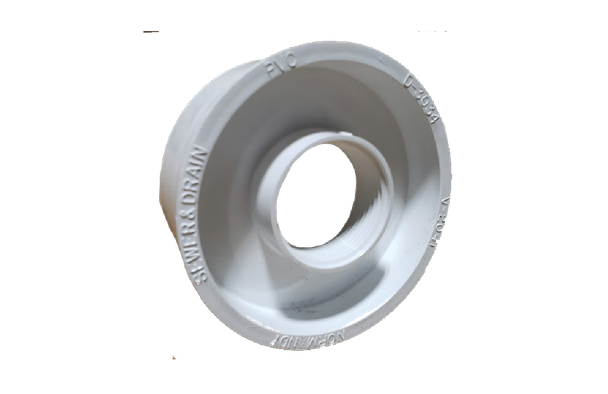

Normandy Solvent Weld SDR35 Threaded Tapped Bushing
Normandy Solvent Weld SDR35 Threaded Tapped Bushings provide a reliable transition from larger solvent weld drain piping to smaller female NPT threaded connections in non-pressure drainage and sewer systems.
Manufactured from durable PVC, these fittings provide resistance to corrosion, chemicals, and underground environmental conditions. Available in 3" x 1-1/2" and 4" x 1-1/2" sizes, each bushing combines a solvent weld spigot connection with a female NPT threaded outlet.
Product Highlights
- Constructed from durable SDR35 PVC
- Spigot x female NPT threaded configuration
- Reduces pipe size while providing a threaded outlet
- Compatible with SDR35 solvent weld piping systems
- Corrosion and chemical resistant PVC construction
- Designed for gravity-flow drain, waste, and sewer applications
- Available in 3" x 1-1/2" and 4" x 1-1/2" sizes
Technical Specifications
| Brand | Normandy |
|---|---|
| Product Type | Threaded Tapped Bushing |
| Pipe Configuration | SDR35 |
| Material | PVC |
| Connection Configuration | Spigot x Female NPT |
| Primary Connection | Solvent Weld Spigot |
| Threaded Connection | Female NPT |
| Available Sizes | 3" x 1-1/2" and 4" x 1-1/2" |
| System Type | Drain, Waste & Sewer |
| Service | Non-Pressure / Gravity Flow |
Construction & Connection Details
Durable PVC Construction
Manufactured from PVC for long service life and resistance to corrosion, chemicals, and conditions commonly encountered in underground drainage installations.
Female NPT Outlet
Precision-molded female threads provide dependable engagement with compatible NPT threaded fittings while allowing the bushing to reduce to a smaller threaded connection.
Solvent Weld Spigot
The solvent weld spigot end creates a secure, leak-resistant connection when properly installed using approved PVC primer and solvent cement.
Reducing Configuration
The bushing transitions from a larger SDR35 solvent weld connection to a 1-1/2" female NPT threaded outlet. Available configurations are 3" x 1-1/2" and 4" x 1-1/2".
Installation Information
Solvent Weld Connection
Use approved PVC primer and solvent cement for the solvent weld connection in accordance with manufacturer recommendations and applicable plumbing codes.
Threaded Connection
Use PTFE thread sealant or thread tape on the threaded connection as recommended. Verify NPT thread compatibility before installation.
Product Documentation
Normandy V-Series Resources
Review the Normandy V-Series product documentation for additional fitting, sizing, and technical information.
Need Help Selecting a Threaded Tapped Bushing?
Our drainage and piping specialists can help confirm bushing size, SDR35 compatibility, female NPT connection requirements, and other application details before you order.
Frequently Asked Questions
What sizes are available?
Available configurations include 3" x 1-1/2" and 4" x 1-1/2".
What connections does this bushing use?
The bushing uses a solvent weld spigot connection on the larger side and a female NPT threaded connection on the reduced side.
What is the purpose of the threaded tapped bushing?
It allows a larger compatible SDR35 solvent weld connection to transition to a smaller female NPT threaded connection.
What material is the bushing made from?
The bushing is manufactured from PVC for durability and resistance to corrosion, chemicals, and underground environmental conditions.
Is this fitting designed for pressure piping?
No. It is intended for compatible non-pressure, gravity-flow drain, waste, and sewer applications.
How should the solvent weld connection be installed?
Use approved PVC primer and solvent cement in accordance with manufacturer recommendations and applicable plumbing codes.
What should be used on the female NPT connection?
Use PTFE thread sealant or thread tape as recommended for the threaded connection and verify thread compatibility before installation.
Important Ordering Notes
- Brand: Normandy.
- Product type: Threaded Tapped Bushing.
- Configuration: SDR35.
- Material: PVC.
- Connection configuration: Spigot x Female NPT.
- Available sizes: 3" x 1-1/2" and 4" x 1-1/2".
- Intended for non-pressure SDR35 drain, waste, and sewer applications.
- Verify both pipe size and NPT thread compatibility before ordering.
- Use approved PVC primer and solvent cement for the solvent weld connection.
- Use PTFE thread sealant or thread tape on threaded connections as recommended.
