Oldcastle Infrastructure

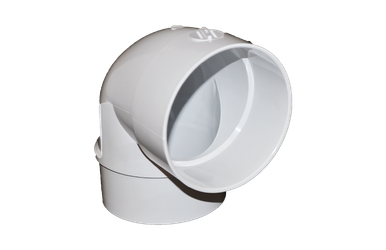

Normandy Solvent Weld SDR35 Short 1/4" Bend Street Elbow
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 0.00 LBS
Description
Solvent Weld SDR35 Short 1/4 Bend Street Elbow
Normandy Solvent Weld SDR35 Short 1/4 Bend Street Elbows provide a compact 90° directional change in compatible non-pressure drain, waste, and vent (DWV) piping systems.
The street-end configuration allows direct hub-to-spigot connections, reducing the need for additional fittings and simplifying installation. Manufactured from durable PVC, these fittings provide corrosion resistance, long service life, and dependable performance in residential, commercial, and municipal drainage applications. Available in 4" and 6" sizes.
Product Highlights
- Short radius 90° (1/4 bend) street elbow
- Street end fits directly into compatible hub fittings
- SDR35 PVC construction
- Solvent weld connections
- Compact configuration helps minimize installation space
- Corrosion, rust, and chemical resistant
- Smooth interior promotes efficient drainage flow
- Lightweight for easier handling and installation
- Designed for non-pressure DWV systems
- Available in 4" and 6" sizes
Technical Specifications
| Brand | Normandy |
|---|---|
| Product Type | Short 1/4 Bend Street Elbow |
| Directional Change | 90° |
| Pipe Configuration | SDR35 |
| Material | PVC |
| Design | Short Radius Street Elbow |
| Connection Style | Street End / Hub-to-Spigot |
| Installation Type | Solvent Weld |
| Available Sizes | 4" and 6" |
| System Type | Drain, Waste & Vent (DWV) |
| Flow Type | Gravity Flow |
| Service | Non-Pressure |
| Applications | Residential, Commercial & Municipal Drainage |
Construction & Flow Design
Durable PVC Construction
Manufactured from PVC for dependable strength, durability, corrosion resistance, and long-lasting performance in compatible drainage systems.
Compact 90° Turn
The short 1/4 bend configuration provides a compact 90° change in direction for gravity-flow drain, waste, and vent piping systems.
Street-End Design
The street end fits directly into a compatible hub fitting, allowing a hub-to-spigot connection that can reduce the need for additional fittings.
Smooth Interior
The smooth interior helps promote efficient drainage flow through compatible non-pressure DWV piping systems.
Application & Installation
Space-Saving Configuration
The compact street elbow configuration helps minimize installation space while providing the required 90° directional change.
Gravity-Flow DWV Systems
Suitable for compatible gravity-flow drain, waste, and vent systems requiring a compact 90° change in piping direction.
Solvent Weld Installation
Use compatible PVC primer and solvent cement to create secure solvent-weld connections.
Verify Compatibility
Confirm the required 4" or 6" fitting size and compatibility with the connected PVC piping system before installation.
Product Documentation
Normandy V-Series Resources
Review the Normandy V-Series product documentation for additional fitting, sizing, and technical information.
Need Help Selecting an SDR35 Short 1/4 Bend Street Elbow?
Our drainage and piping specialists can help confirm fitting size, SDR35 compatibility, street-end connections, and application requirements before you order.
Frequently Asked Questions
What is a short 1/4 bend street elbow used for?
It provides a compact 90° directional change in compatible non-pressure drain, waste, and vent piping systems.
What sizes are available?
The Normandy SDR35 Short 1/4 Bend Street Elbow is available in 4" and 6" sizes.
What is the purpose of the street end?
The street end fits directly into a compatible hub fitting, providing a hub-to-spigot connection that can reduce the need for an additional fitting.
What material is the fitting made from?
The fitting is manufactured from durable PVC for strength and resistance to corrosion, rust, and chemicals.
How much does this fitting change the direction of the pipe?
The 1/4 bend provides a 90° directional change.
How is the fitting installed?
The fitting uses solvent-weld connections. Use compatible PVC primer and solvent cement for installation.
Is this fitting intended for pressure piping?
No. It is designed for compatible non-pressure drain, waste, and vent applications.
Where can this fitting be used?
It is designed for compatible residential, commercial, and municipal drainage applications requiring a compact 90° directional change.
Important Ordering Notes
- Brand: Normandy.
- Product type: Short 1/4 Bend Street Elbow.
- Directional change: 90°.
- Pipe configuration: SDR35.
- Material: PVC.
- Street-end design provides a hub-to-spigot connection.
- Installation type: Solvent Weld.
- Available sizes: 4" and 6".
- Designed for compatible non-pressure drain, waste, and vent applications.
- Confirm the correct fitting size and piping compatibility before ordering.
- Use compatible PVC primer and solvent cement for installation.
- Install in accordance with applicable plumbing codes and manufacturer recommendations.
