Oldcastle Infrastructure
Normandy 4" x 1-1/2"Solvent Weld SDR35 Saddle Tee
- SKU:
- V-1204
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 0.26 LBS
Description

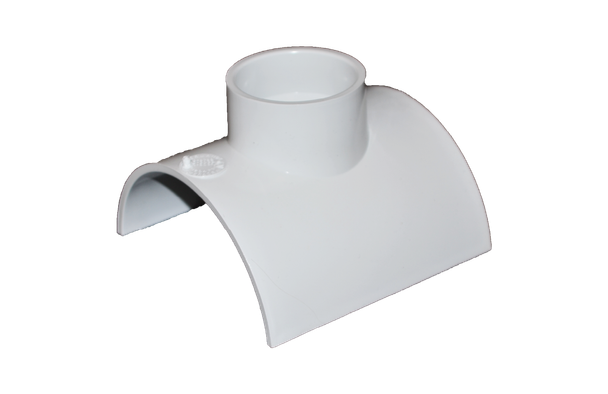

Normandy 4" x 1-1/2" Solvent Weld SDR35 Saddle Tee
Normandy V-1204 4" x 1-1/2" SDR35 Saddle Tee provides a 1-1/2" branch connection on compatible 4" PVC pipe without requiring installation of a conventional full-size tee fitting.
Manufactured from durable PVC, the fitting provides resistance to corrosion and moisture for dependable service in compatible sewer, drain, and waste piping systems. Its contoured saddle body is designed to fit over compatible 4" PVC pipe while providing a reduced 1-1/2" branch outlet.
Product Highlights
- Normandy model V-1204
- 4" x 1-1/2" nominal size
- SDR35 saddle tee configuration
- Durable PVC construction
- Creates a 1-1/2" branch connection on compatible 4" PVC pipe
- Contoured saddle body fits over compatible 4" pipe
- Provides a reduced 1-1/2" branch outlet
- Corrosion and moisture resistant
- Lightweight for easier handling and installation
- Designed for compatible PVC sewer, drain, and waste piping systems
Technical Specifications
| Brand | Normandy |
|---|---|
| Model | V-1204 |
| Product Type | Saddle Tee |
| Nominal Size | 4" x 1-1/2" |
| Pipe Configuration | SDR35 |
| Material | PVC |
| Main Pipe Size | 4" |
| Branch Size | 1-1/2" |
| Body Design | Contoured Saddle |
| System Compatibility | Compatible PVC Sewer, Drain & Waste Piping Systems |
Construction & Function
Durable PVC Construction
The fitting is molded from PVC for resistance to corrosion, moisture, and many common materials encountered in compatible non-pressure drainage systems.
1-1/2" Branch Connection
The V-1204 provides a reduced 1-1/2" branch connection on compatible 4" PVC piping.
Contoured Saddle Body
The saddle body is contoured to fit over compatible 4" PVC pipe, allowing a branch opening to be incorporated without installing a conventional full-size tee fitting.
SDR35 Configuration
Designed for compatible SDR35 PVC piping applications. Pipe size, pipe series, outlet configuration, and joining requirements should be verified before installation.
Application & Installation
Sewer, Drain & Waste Systems
Designed for use with compatible PVC sewer, drain, and waste piping systems requiring a 1-1/2" branch connection from 4" pipe.
Verify Pipe Compatibility
Confirm the 4" pipe size, SDR35 pipe configuration, 1-1/2" outlet requirements, and compatibility with the connected PVC piping system before installation.
Approved Installation Materials
Use only approved installation materials and procedures suitable for the connected PVC piping system.
Installation Requirements
Consult Normandy manufacturer documentation and applicable plumbing codes for installation and joining requirements.
Product Documentation
Normandy V-Series Resources
Review the Normandy V-Series documentation for additional product, fitting, and installation information.
Need Help Selecting an SDR35 Saddle Tee?
Our drainage and piping specialists can help confirm pipe size, SDR35 compatibility, branch size, and connection requirements before you order.
Frequently Asked Questions
What is the Normandy V-1204 Saddle Tee used for?
It provides a 1-1/2" branch connection on compatible 4" PVC pipe in sewer, drain, and waste piping systems.
What size is this saddle tee?
The fitting has a nominal size of 4" x 1-1/2", with a 1-1/2" branch connection for compatible 4" PVC pipe.
What is the model number?
The Normandy model number is V-1204.
What material is the saddle tee made from?
It is molded from PVC for durability and resistance to corrosion and moisture.
How does a saddle tee differ from a conventional tee?
The contoured saddle body fits over compatible pipe to provide a branch opening without requiring installation of a conventional full-size tee fitting.
What size branch connection does it provide?
The fitting provides a 1-1/2" branch outlet on compatible 4" PVC pipe.
What should be verified before installation?
Verify the pipe size, pipe series, outlet configuration, and joining requirements before installation.
What installation materials should be used?
Use only approved installation materials and procedures suitable for the connected PVC piping system, and follow manufacturer documentation and applicable plumbing codes.
Important Ordering Notes
- Brand: Normandy.
- Model: V-1204.
- Product type: Saddle Tee.
- Nominal size: 4" x 1-1/2".
- Pipe configuration: SDR35.
- Material: PVC.
- Designed to provide a 1-1/2" branch connection on compatible 4" PVC pipe.
- Verify pipe size, pipe series, outlet configuration, and joining requirements before ordering.
- Use only approved installation materials and procedures suitable for the connected PVC piping system.
- Consult manufacturer documentation and applicable plumbing codes for installation requirements.
