Midland Industries
Midland Male x Female Tee Handle Ball Valve
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 0.00 LBS
Description

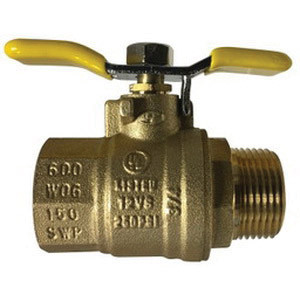

Midland Male x Female Tee Handle Ball Valve
Midland Male x Female Tee Handle Ball Valves are designed for dependable quarter-turn shutoff in commercial, industrial, plumbing, utility, and general fluid handling systems.
Manufactured from forged brass with male NPT x female NPT threaded connections, these valves combine a full-port flow path with a compact brass tee handle for reliable control where handle clearance is limited. Available in sizes from 1/4" through 1-1/4", they are suitable for water, oil, gas, and other compatible general-purpose applications.
Product Highlights
- Midland forged brass full-port ball valve
- Male NPT x Female NPT threaded connections
- MIP x FIP connection configuration
- Compact brass tee handle
- Quarter-turn open and close operation
- Full-port design for maximum flow capacity
- Corrosion-resistant forged brass construction
- Designed for dependable on/off shutoff
- Suitable for water, oil, gas, and compatible general service
- Available in sizes from 1/4" through 1-1/4"
Technical Specifications
| Product Type | Full-Port Ball Valve |
|---|---|
| Brand | Midland |
| Body Material | Forged Brass |
| Connection Type | Male NPT x Female NPT |
| Connection Configuration | MIP x FIP |
| Port Style | Full Port |
| Handle Style | Compact Brass Tee Handle |
| Operation | Quarter Turn |
| Available Sizes | 1/4" through 1-1/4" |
| Primary Function | Manual On/Off Flow Control |
| Typical Media | Water, Oil, Gas, and Other Compatible Media |
| Typical Applications | Commercial, Industrial, Plumbing, Utility, and General Fluid Handling Systems |
Valve Configuration
Male NPT Connection
The male threaded end installs directly into a compatible female NPT fitting, port, manifold, or equipment connection.
Female NPT Connection
The opposite end accepts a compatible male NPT pipe, nipple, fitting, or equipment connection.
Compact Tee Handle
The brass tee handle provides positive quarter-turn operation while requiring less clearance than a conventional long lever handle.
Construction Details
The forged brass body provides dependable strength, durability, and corrosion resistance for long service life in compatible fluid handling applications.
The full-port ball design helps maintain unrestricted flow while minimizing pressure drop across the valve when fully open.
The MIP x FIP threaded configuration allows the valve to connect directly between compatible female- and male-threaded components, while the compact tee handle provides simple manual control in space-conscious installations.
Why Choose a MIP x FIP Tee Handle Valve?
Direct Thread Transition
- Male NPT connection on one end
- Female NPT connection on the opposite end
- Can reduce the need for separate adapters
- Useful for equipment connections
- Simplifies compact piping layouts
Compact Manual Control
- Quarter-turn operation
- Compact tee handle
- Quick open and closed positioning
- Full-port flow path
- Useful where handle clearance is limited
Available Sizes
The supplied product information identifies multiple nominal sizes ranging from 1/4" through 1-1/4". Select the appropriate size to match the intended piping system and connection requirements.
Typical Applications
Commercial & Plumbing
- Water piping
- General plumbing systems
- Mechanical equipment connections
- Utility piping
- Service shutoff points
Industrial & General Service
- Industrial utility lines
- Compatible oil service
- Compatible gas applications
- General fluid transfer
- Equipment isolation
Our pipe, valve, and industrial product specialists can help review your valve size, MIP x FIP connections, full-port requirements, tee-handle clearance, media compatibility, and piping application before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What connection configuration does this valve use?
The valve uses a male NPT connection on one end and a female NPT connection on the other, commonly identified as MIP x FIP.
Is this a full-port valve?
Yes. The valve uses a full-port internal flow path designed to help maximize flow capacity and minimize pressure loss.
What material is the valve body made from?
The supplied product information identifies forged brass construction.
What type of handle does it use?
The valve uses a compact brass tee handle for quarter-turn manual operation.
What sizes are available?
The supplied product information identifies sizes from 1/4" through 1-1/4".
What media can this valve be used with?
The supplied information identifies water, oil, gas, and general-purpose service. Always verify material, pressure, and temperature compatibility for the specific application.
Why use a tee handle?
A tee handle generally requires less operating clearance than a long lever handle, making it useful in compact or enclosed piping installations.
What should I verify before ordering?
Confirm valve size, MIP x FIP connection requirements, operating pressure, temperature, intended media, and available tee-handle clearance.
Important Ordering & Installation Notes
- This listing is for Midland MIP x FIP Tee Handle Full Port Brass Ball Valves.
- Available sizes range from 1/4" through 1-1/4".
- Confirm the required nominal valve size before ordering.
- One end uses a male NPT connection and the opposite end uses a female NPT connection.
- Verify forged brass construction is compatible with the intended service media.
- Confirm operating pressure and temperature requirements before installation.
- Use appropriate thread sealant or PTFE tape where permitted on NPT connections.
- Apply installation torque to proper wrenching surfaces rather than the tee handle.
- Avoid excessive tightening that could damage the valve body or threaded connections.
- Verify adequate clearance for complete quarter-turn tee-handle operation.
- Support connected piping or equipment to prevent excessive mechanical loading on the valve.
- Check threaded connections for leakage after installation.
- Use the valve primarily in the fully open or fully closed position for isolation service.
- Fully isolate and depressurize the system before servicing or replacing the valve.
- Install according to applicable plumbing codes and Midland manufacturer recommendations.
