Charman Inc.
Lead-Free Brass IPS Full Port Gate Valve
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

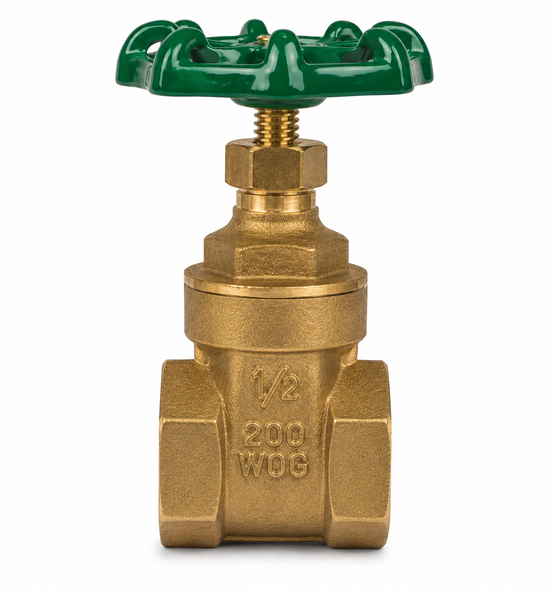

Lead-Free Brass IPS Full Port Gate Valve
Charman lead-free brass IPS full port gate valves provide dependable on/off flow control for threaded piping systems using female IPS threaded connections.
Select the required nominal pipe size from the product options above. The selected variation determines the Charman part number, online selling price, net cost, estimated shipping weight, and size-specific product information.
Product Highlights
- Lead-free brass construction
- Full-port gate valve design
- Female IPS threaded connections
- Manual handwheel operation
- Designed for on/off isolation service
- Suitable for compatible threaded piping systems
- Available in nominal sizes from 1/2" through 3"
- Charman Manufacturing product family
Available Sizes
| Charman Part # | Nominal Size | Connection |
|---|---|---|
| 1001-NL | 1/2" | IPS Threaded |
| 1002-NL | 3/4" | IPS Threaded |
| 1003-NL | 1" | IPS Threaded |
| 1004-NL | 1-1/4" | IPS Threaded |
| 1005-NL | 1-1/2" | IPS Threaded |
| 1006-NL | 2" | IPS Threaded |
| 1007-NL | 2-1/2" | IPS Threaded |
| 1008-NL | 3" | IPS Threaded |
Technical Specifications
| Product Type | Gate Valve |
|---|---|
| Body Material | Brass |
| Port Configuration | Full Port |
| Connection Style | IPS Threaded |
| End Connections | Female Threaded x Female Threaded |
| Operation | Manual Handwheel |
| Pressure Rating | 200 PSI WOG / 125 PSI WSP |
| Lead-Free | Yes |
| Manufacturer | Charman Inc. |
IPS Threaded Connections
Female IPS threaded connections allow the valve to connect directly to compatible male-threaded pipe, nipples, fittings, or equipment connections. Threaded construction also allows the valve to be installed without soldering the valve directly into the piping system.
Full-Port Gate Valve Design
The full-port configuration provides a relatively unrestricted flow path through the valve when fully open. The internal gate is raised and lowered by turning the handwheel to provide positive on/off isolation of the piping system.
Gate Valve Operation
Gate valves are primarily designed for isolation service. For normal operation, the valve should generally be placed in either the fully open or fully closed position rather than used for continuous throttling or flow regulation.
Common Applications
Plumbing & Water Systems
- Commercial plumbing
- Residential plumbing
- Water distribution systems
- Threaded water piping
Mechanical & General Service
- Mechanical piping systems
- Equipment isolation
- Maintenance and repair
- General threaded piping assemblies
Manufacturer Resources
Review the Charman Brass Gate Valves information for manufacturer-listed IPS and CC full-port gate valve sizes, part numbers, packaging information, and product details.
View Charman Brass Gate Valve InformationNeed Help Selecting a Brass Gate Valve?
Our industrial PVF specialists can help confirm nominal valve size, IPS threaded connection requirements, service conditions, quantities, and product availability.
Frequently Asked Questions
What type of connections does this gate valve use?
This valve uses female IPS threaded connections on both ends for connection to compatible male-threaded pipe, nipples, fittings, or equipment connections.
Is this a full-port gate valve?
Yes. Charman identifies this product family as IPS full port gate valves.
Is this valve lead-free?
Yes. This Charman brass gate valve family is identified as lead-free.
What is the pressure rating?
The valve is rated for 200 PSI WOG and 125 PSI WSP.
What is the difference between this valve and the CC version?
This product uses female IPS threaded connections. Charman's separate CC full-port gate valve family uses copper sweat connections for installation with compatible copper tube.
Should a gate valve be used for throttling?
Gate valves are primarily intended for isolation service in the fully open or fully closed position rather than continuous throttling or flow regulation.
How do I select the correct size?
Select the nominal valve size that matches the threaded piping system and verify the required connection type before ordering.
Important Ordering Notes
- Select the required nominal pipe size before adding the product to your cart.
- This product uses female IPS threaded connections.
- Do not confuse this valve with the separate Charman CC copper sweat gate valve.
- The selected variation determines the Charman part number, selling price, estimated shipping weight, and net cost.
- Verify nominal valve size and threaded connection compatibility before ordering.
- Confirm pressure, temperature, media compatibility, and applicable installation requirements before use.
- Product appearance, handwheel color, and casting markings may vary by size or production run.
