Empire Industries

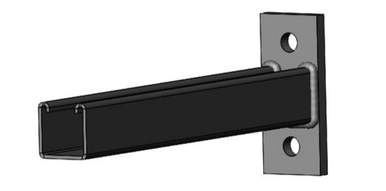

Fig. 9200 Single Channel Reversible Bracket
- SKU:
- 9200Z
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
- Note:
- SS Available only by Request
Description
Fig. 9200 Single Channel Reversible Bracket
Empire Industries Fig. 9200 Single Channel Reversible Bracket is a versatile strut support bracket designed for mounting and supporting pipe, conduit, and equipment using standard strut channel systems.
The reversible design allows flexible installation in multiple orientations for mechanical, plumbing, and electrical applications. The bracket features a two-hole mounting configuration and is offered in lengths from 6" through 36". Zinc plated is the standard finish, with T-304 and T-316 stainless steel available by request.
Product Highlights
- Reversible design for flexible installation
- Compatible with standard strut channel systems
- Two-hole mounting configuration
- 9/16" diameter mounting holes
- Available lengths: 6", 12", 18", 24", 30", and 36"
- Approximately 2" wide
- Zinc plated finish
- T-304 and T-316 stainless steel available by request
- Designed for pipe, conduit, and equipment support applications
- Suitable for industrial and commercial installations
Reversible Design
The Fig. 9200 reversible configuration provides installation flexibility by allowing the bracket to be positioned in multiple orientations to suit the support arrangement.
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 9200 |
| Product Type | Single Channel Reversible Bracket |
| Mounting Configuration | 2-Hole |
| Hole Diameter | 9/16" |
| Width | Approx. 2" |
| Available Lengths | 6", 12", 18", 24", 30", 36" |
| Standard Finish | Zinc Plated |
| Optional Finishes | T-304 Stainless Steel and T-316 Stainless Steel - By Request Only |
| Load Capacity | Up to approximately 1,200 lbs, depending on bracket size |
Strut Support Applications
Designed for use with standard strut channel systems, the Fig. 9200 can be used for supporting pipe, conduit, equipment, and other components in mechanical, plumbing, and electrical installations.
Available Lengths & Finishes
The Fig. 9200 is available in 6", 12", 18", 24", 30", and 36" lengths. Zinc plated is the standard finish. T-304 and T-316 stainless steel configurations are available by request for applications requiring stainless steel construction.
Important Ordering Notes
Confirm the required bracket length, finish, mounting arrangement, and load requirements before ordering. T-304 and T-316 stainless steel configurations are available by request only.
Product Documents
Product Questions
What is the Fig. 9200 bracket used for?
The Fig. 9200 is designed for mounting and supporting pipe, conduit, equipment, and other components using standard strut channel systems.
What lengths are available?
Available lengths are 6", 12", 18", 24", 30", and 36".
What size are the mounting holes?
The bracket uses a two-hole mounting configuration with 9/16" diameter holes.
What finish is standard?
Zinc plated is the standard finish.
Are stainless steel versions available?
Yes. T-304 stainless steel and T-316 stainless steel versions are available by request only.
What is the load capacity?
Load capacity is listed at up to approximately 1,200 lbs and varies by bracket size. Confirm the requirements for the selected bracket before installation.
