Empire Industries

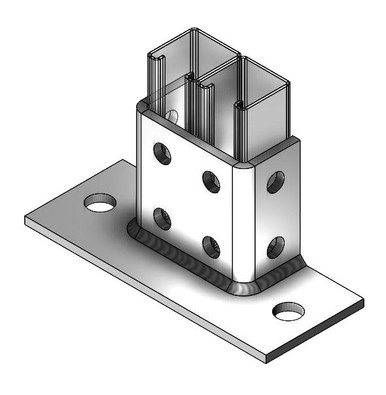

Fig. 9091PB Post Base for 1-5/8" x 3-1/4" Strut
- SKU:
- 9091PBZ
- Availability:
- Usually Ships Same Day
- Weight:
- 3.39 LBS
Description
Fig. 9091PB Post Base for 1-5/8" x 3-1/4" Strut
Empire Fig. 9091PB Post Base is designed for 1-5/8" x 3-1/4" strut and features a zinc-plated finish.
Product Highlights
- Designed for 1-5/8" x 3-1/4" strut
- Zinc-plated finish
- 1/4" thickness
- 9/16" hole diameter
- Weight: 3.20 lbs each
Strut Compatibility
The Fig. 9091PB Post Base is specifically designed for 1-5/8" x 3-1/4" strut.
Technical Specifications
| Figure | 9091PB |
|---|---|
| Product Type | Post Base |
| Strut Size | 1-5/8" x 3-1/4" |
| Material / Finish | Zinc Plated (9091PBZ) |
| Thickness | 1/4" |
| Hole Diameter | 9/16" |
| Weight | 3.20 lbs each |
Construction Details
The Fig. 9091PB has a 1/4" thickness, 9/16" hole diameter, and zinc-plated finish. Each post base weighs 3.20 lbs.
Important Ordering Notes
Confirm Fig. 9091PB and the required 1-5/8" x 3-1/4" strut size before ordering. The submittal identifies the material and finish as zinc plated (9091PBZ).
Product Documents
Product Questions
What size strut is the Fig. 9091PB designed for?
The Fig. 9091PB is designed for 1-5/8" x 3-1/4" strut.
What finish is specified for the Fig. 9091PB?
The specified finish is zinc plated, identified as 9091PBZ.
How thick is the Fig. 9091PB?
The specified thickness is 1/4".
What is the hole diameter?
The specified hole diameter is 9/16".
How much does the Fig. 9091PB weigh?
Each Fig. 9091PB Post Base weighs 3.20 lbs.
