Fig. 9053UF 5-Hole “U” Support for 1-5/8″ x 1-5/8″ Strut
- SKU:
- 9053UFZ
- Availability:
- Usually Ships Same Day
- Weight:
- 0.72 LBS
Description

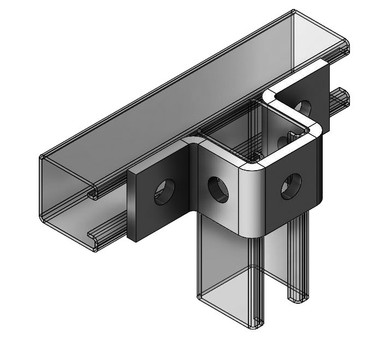

Fig. 9053UF 5-Hole "U" Support for 1-5/8" x 1-5/8" Strut
Empire Fig. 9053UF 5-Hole "U" Support is a zinc-plated U-shaped strut fitting designed for use with 1-5/8" x 1-5/8" strut.
The fitting features a five-hole configuration, 1/4" material thickness, and 9/16" diameter holes.
Product Highlights
- 5-hole U-shaped support
- For 1-5/8" x 1-5/8" strut
- Zinc-plated finish
- 1/4" thickness
- 9/16" hole diameter
- Weight: 0.83 lbs each
U-Shaped Configuration
The Fig. 9053UF features a five-hole U-shaped configuration sized for 1-5/8" x 1-5/8" strut.
Technical Specifications
| Figure | 9053UF |
|---|---|
| Product Type | 5-Hole "U" Support |
| Strut Size | 1-5/8" x 1-5/8" |
| Finish | Zinc Plated |
| Thickness | 1/4" |
| Hole Diameter | 9/16" |
| Weight | 0.83 lbs each |
Zinc-Plated Construction
The fitting is supplied with a zinc-plated finish and features 1/4" material thickness with 9/16" diameter holes.
Important Ordering Notes
Confirm Fig. 9053UF and compatibility with 1-5/8" x 1-5/8" strut before ordering. This listing is for the zinc-plated configuration.
Product Documents
Product Questions
What type of fitting is the Fig. 9053UF?
The Fig. 9053UF is a 5-hole U-shaped support for strut.
What strut size is the Fig. 9053UF designed for?
It is designed for 1-5/8" x 1-5/8" strut.
What finish does the Fig. 9053UF have?
The Fig. 9053UF has a zinc-plated finish.
How thick is the Fig. 9053UF?
The fitting has a 1/4" material thickness.
What is the hole diameter?
The specified hole diameter is 9/16".
What is the weight of the Fig. 9053UF?
The specified weight is 0.83 lbs each.
