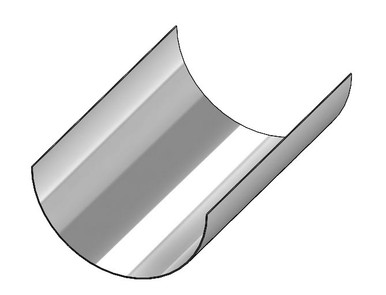

Fig. 167 Pipe Covering Protection Shield
Empire Fig. 167 Pipe Covering Protection Shield is designed for the outside of foam or fiberglass insulation on stationary pipe lines to prevent crushing of the insulation without breaking the vapor barrier.
Product Highlights
- For stationary insulated piping systems
- Protects foam or fiberglass insulation from crushing
- Helps preserve the insulation vapor barrier
- Not designed for pipe rollers
- Available in pre-galvanized, T-304 stainless steel, and T-316 stainless steel
- 12" shield length
- Shield sizes 0 through 30
- Domestically manufactured
Shield Size Data
| Shield Size | Stock Size | Diameter | Hanger Size | Weight Each |
|---|---|---|---|---|
| 0 | 24 ga | 1-7/8" | 1-1/2" | 0.25 lb |
| 1 | 24 ga | 2-3/8" | 2" | 0.31 lb |
| 2 | 24 ga | 2-7/8" | 2-1/2" | 0.37 lb |
| 3 | 18 ga | 3-1/2" | 3" | 0.90 lb |
| 4 | 18 ga | 4" | 3-1/2" | 0.95 lb |
| 5 | 18 ga | 4-1/2" | 4" | 1.10 lb |
| 6 | 18 ga | 5" | 5" | 1.25 lb |
| 7 | 18 ga | 5-9/16" | 5" | 1.40 lb |
| 8 | 18 ga | 6-5/8" | 6" | 1.65 lb |
| 9 | 18 ga | 7-5/8" | 8" | 1.90 lb |
| 10 | 18 ga | 8-5/8" | 8" | 2.10 lb |
| 13 | 18 ga | 9-5/8" | 10" | 2.35 lb |
| 14 | 18 ga | 10-3/4" | 10" | 2.65 lb |
| 15 | 18 ga | 11-3/4" | 12" | 2.95 lb |
| 16 | 18 ga | 12-3/4" | 12" | 3.15 lb |
| 17 | 16 ga | 14" | 14" | 4.45 lb |
| 18 | 16 ga | 15" | 16" | 4.46 lb |
| 19 | 16 ga | 16" | 16" | 4.90 lb |
| 20 | 16 ga | 17" | 18" | 5.15 lb |
| 21 | 16 ga | 18" | 18" | 5.50 lb |
| 22 | 16 ga | 19" | 20" | 5.70 lb |
| 23 | 16 ga | 20" | 20" | 6.35 lb |
| 24 | 16 ga | 21" | 24" | 6.45 lb |
| 25 | 16 ga | 22" | 24" | 6.60 lb |
| 26 | 16 ga | 23" | 24" | 7.00 lb |
| 27 | 16 ga | 24" | 24" | 7.85 lb |
| 28 | 16 ga | 26" | 30" | 7.90 lb |
| 29 | 16 ga | 27" | 30" | 8.05 lb |
| 30 | 16 ga | 28" | 30" | 8.60 lb |
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 167 |
| Product Type | Pipe Covering Protection Shield |
| Materials / Finishes | Pre-Galvanized (167G), T-304 Stainless Steel (167SS), T-316 Stainless Steel (167SX) |
| Insulation | Foam or Fiberglass |
| Service | Stationary Pipe Lines |
| Shield Length | 12" |
| Pipe Rollers | Not Designed for Pipe Rollers |
Shield Selection
Shield size is selected according to the pipe or tubing size and insulation thickness. Empire publishes selection data for 1/2", 3/4", 1", 1-1/2", and 2" insulation thicknesses. Refer to the Fig. 167 submittal for the applicable shield size.
Important Ordering Notes
- Specify the figure number and shield size when ordering.
- Select the shield size according to pipe or tubing size and insulation thickness.
- Refer to the Fig. 167 submittal for the complete pipe and tubing shield selection charts.
Product Documents
Product Questions
What is the Fig. 167 Protection Shield used for?
It is installed outside foam or fiberglass insulation on stationary pipe lines to prevent crushing of the insulation without breaking the vapor barrier.
Can the Fig. 167 be used with pipe rollers?
No. Empire specifies that the Fig. 167 is not designed for pipe rollers.
What materials are available?
Empire lists pre-galvanized, T-304 stainless steel, and T-316 stainless steel configurations.
