Merit Brass

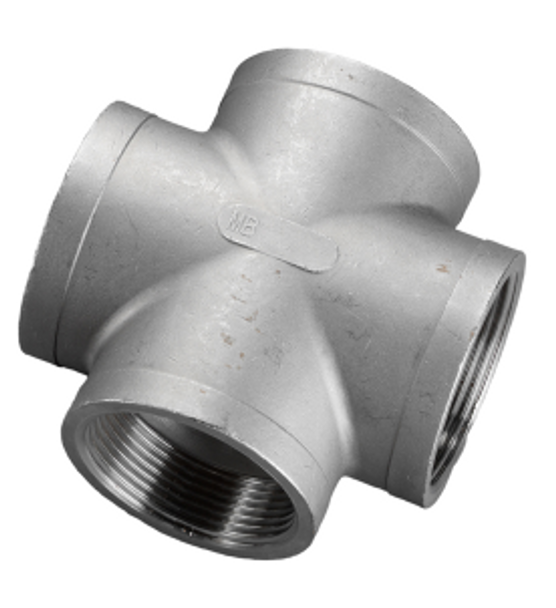

150# Stainless Steel Cross ISO 49
- SKU:
- K410-K610
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
150# Stainless Steel Cross ISO 49
150# Stainless Steel Cross Fittings are standard-pattern cast fittings designed to create intersecting branch connections in compatible threaded piping systems. The four-way configuration allows a main piping run to connect with two opposing branch lines, making the fitting useful where multiple flow paths must meet at a single connection point.
The fitting family conforms to AISI 304 or 316 stainless steel material requirements and ISO 49-1983 (E) dimensional requirements. These fittings are also listed as low lead certified to NSF/ANSI 61.
Product Highlights
- 150# stainless steel cross fitting
- Standard-pattern cast fitting design
- Four-way connection configuration
- Creates two opposing 90° branch connections from the main run
- Available in AISI 304 or 316 stainless steel material
- Low lead certified to NSF/ANSI 61
- Dimensions conform to ISO 49-1983 (E)
- Corrosion-resistant stainless steel construction
- Designed for straightforward installation
- Helps prevent contamination from rust, scale, and small particles
- Resists corrosive attack from many industrial and chemical solutions and mixtures
- Provides strength at elevated temperatures
- Long service-life potential in compatible applications
Cross Fitting Design
A cross fitting provides four connection points arranged around a common fitting body. This allows two opposing branch lines to intersect a main piping run at 90-degree angles.
The configuration is useful where several piping runs must connect at a common point without using multiple separate tee fittings.
Four-Way Connection
The cross configuration can be used to distribute, combine, or redirect flow through multiple connected piping runs.
Because several flow paths meet within the same fitting, confirm system layout, flow requirements, nominal connection size, and operating conditions before installation.
Technical Specifications
| Product Type | Cross |
|---|---|
| Pressure Class | 150# |
| Material | Stainless Steel |
| Material Grades | AISI 304 or 316 |
| Dimensional Standard | ISO 49-1983 (E) |
| Connection Configuration | Four-Way |
| Branch Orientation | Opposing 90° Branch Connections |
| Construction Style | Standard Pattern Cast Fitting |
| Certification | Low Lead Certified NSF/ANSI 61 |
| Primary Function | Multiple Branch / Flow Connections |
Stainless Steel Construction
The stainless steel construction provides corrosion resistance while helping prevent contamination associated with rust, scale, and small particles that can occur with some other metallic piping materials.
The supplied product information states that the material resists corrosive attack from hundreds of industrial and chemical solutions and mixtures and provides greater strength at elevated temperatures.
NSF/ANSI 61 Low Lead Certification
This fitting is listed as low lead certified to NSF/ANSI 61, supporting use in compatible potable-water applications where applicable code and system requirements are met.
Always confirm complete system requirements, local codes, operating conditions, and media compatibility before installation.
ISO 49 Standard Pattern
Dimensions conform to ISO 49-1983 (E), providing dimensional consistency for compatible standard-pattern cast stainless steel fittings.
Use the manufacturer dimensional document below to confirm fitting dimensions before ordering or installation.
Cross vs. Tee Fittings
Cross Fitting
- Four total connection points
- Creates two opposing branch connections
- Useful where multiple piping runs intersect
- Provides multiple flow paths within one fitting
Tee Fitting
- Three total connection points
- Creates one 90° branch connection
- Useful for a single branch from a main run
- Simpler configuration than a cross fitting
Common Applications
Commercial & General Piping
- Water piping systems
- Commercial plumbing
- General process piping
- Multi-branch piping connections
- Threaded stainless steel piping assemblies
Industrial & Corrosive Service
- Industrial process piping
- Chemical handling systems
- Corrosion-resistant piping applications
- Elevated-temperature service where compatible
- Applications where rust and scale contamination are undesirable
Important Ordering Notes
- Product type: 150# Stainless Steel Cross.
- Four-way fitting configuration.
- Creates two opposing 90° branch connections.
- Low lead certified to NSF/ANSI 61.
- Material conforms to AISI 304 or 316 requirements.
- Dimensions conform to ISO 49-1983 (E).
- Stainless steel construction provides corrosion resistance.
- Confirm nominal size, material grade, piping configuration, system pressure, operating temperature, and media compatibility before ordering.
- Verify applicable potable-water and local-code requirements when used in drinking-water systems.
- Refer to both Product Documents for fitting and pipe dimensional information.
Product Documents
Frequently Asked Questions
What is a cross fitting used for?
A cross fitting provides four connection points and is used where a main piping run intersects two opposing branch lines.
What pressure class is this cross?
This fitting is listed as a 150# stainless steel cross.
How many connections does a cross fitting have?
A cross fitting has four connection points arranged around the fitting body.
How is a cross different from a tee?
A cross provides four connections and two opposing branch paths, while a tee provides three connections and one branch path.
What stainless steel grades are used?
The supplied product information states that the fitting family conforms to AISI 304 or 316 stainless steel material requirements.
What dimensional standard applies?
The fitting dimensions conform to ISO 49-1983 (E).
Is this fitting low lead certified?
Yes. The supplied product information lists the fitting as low lead certified to NSF/ANSI 61.
Why use stainless steel for this fitting?
Stainless steel provides corrosion resistance and helps avoid contamination associated with rust and scale in compatible applications.
Can this fitting be used in corrosive environments?
The supplied product information states that the stainless steel material resists corrosive attack from hundreds of industrial and chemical solutions and mixtures. Actual compatibility should be confirmed for the specific media and operating conditions.
Where can I find fitting dimensions?
Use the Merit Stainless Steel Standard Pattern Cast Fittings PDF in the Product Documents section above.
How can I confirm common pipe dimensions?
Use the Pipe Chart: Common Diameters & Wall Thicknesses PDF in the Product Documents section above.
