Charman Inc.

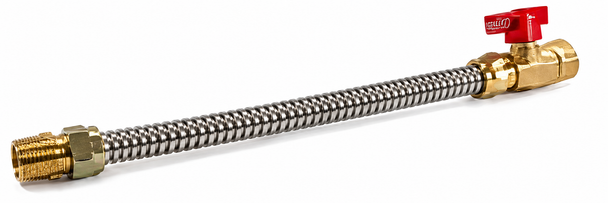

Charman 1/2" OD Uncoated Connector - 1/2" MIP x 1/2" FIP Straight Ball Valve
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
Charman 1/2" OD Uncoated Connector - 1/2" MIP x 1/2" FIP Straight Ball Valve
Charman 1/2" OD Uncoated Connectors with 1/2" MIP x 1/2" FIP Straight Ball Valve combine a flexible uncoated stainless steel connector with a male threaded connection, female threaded valve connection, and integrated straight ball valve. Eight available lengths make it easier to match the connector to different equipment locations and installation layouts.
Available in lengths from 12" through 72", every B5 variant uses the same 1/2" OD flexible connector with a 1/2" MIP connection on one end and a 1/2" FIP straight ball valve on the other. Select a length that provides proper routing without excessive stretching, twisting, kinking, or unnecessary strain on the connector.
Product Highlights
- 1/2" outside diameter
- Uncoated connector design
- Integrated straight ball valve
- Eight connector lengths available
- 1/2" MIP x 1/2" FIP connections
- Flexible stainless steel connector construction
- Available in lengths ranging from 12" through 72"
- Integrated valve configuration provides a convenient shutoff point at the connection
What Is a 1/2" OD Uncoated Connector?
A 1/2" OD uncoated connector provides a flexible connection between compatible piping and equipment. Its flexible construction helps accommodate spacing and alignment while reducing the need for a completely rigid piping arrangement.
This B5 configuration uses a 1/2" MIP connection on one end and a 1/2" FIP straight ball valve on the other. The matching nominal size simplifies connection planning while the integrated straight valve provides an accessible shutoff point within the assembly.
Why Choose a Charman 1/2" OD Uncoated Connector?
MIP x FIP Valve Configuration
- Mixed threaded ends
- Integrated straight ball valve
- 1/2" MIP connector connection
- 1/2" FIP ball valve connection
- Same connection arrangement across all lengths
Multiple Length Options
- Eight lengths
- 12" through 72"
- Flexible routing options
- Useful for different equipment locations
- Allows connector length to match the installation layout
Common Applications
Equipment Connections
- Equipment hookups
- Replacement connections
- Flexible piping transitions
- Connection-point alignment
- Compatible equipment installations
Valve & Maintenance Access
- Shutoff access
- Service connections
- Equipment maintenance
- Connection replacements
- Installations requiring an integrated straight ball valve
Construction Details
Uncoated Flexible Connector
- 1/2" OD design
- Flexible connector body
- Uncoated exterior configuration
- Available in multiple overall lengths
- Designed for compatible flexible connection applications
1/2" MIP x 1/2" FIP Straight Valve Design
- Mixed threaded connections
- 1/2" MIP inlet connection
- 1/2" FIP straight ball valve
- Integrated shutoff-valve arrangement
- Connection sizes remain consistent across all available lengths
Available Connector Lengths
The Charman 1/2" OD Uncoated Connector - 1/2" MIP x 1/2" FIP Straight Ball Valve is available in 12", 18", 24", 30", 36", 48", 60", and 72" lengths.
All eight variants maintain the same 1/2" OD and 1/2" MIP x 1/2" FIP straight ball valve configuration. Only the overall connector length changes between variants.
Selecting the Correct Connector Length
Shorter Lengths
- 12"
- 18"
- 24"
- Compact routing
- Useful for nearby connection points
Longer Lengths
- 30" through 72"
- Additional routing length
- Greater connection distance
- More flexibility for equipment positioning
- Useful where connection points are farther apart
Where This Charman Connector Makes Sense
- For flexible equipment connections
- Where a straight shutoff valve is needed
- When 1/2" MIP x 1/2" FIP threads are required
- For replacement or new installation work
- Where flexible routing is preferred between connection points
- When a 1/2" OD uncoated connector with an integrated straight valve matches the installation
Installation & Selection Considerations
- Select the appropriate connector length.
- Confirm the 1/2" MIP and 1/2" FIP connection sizes.
- Provide adequate clearance around the straight ball valve.
- Route the connector without excessive bending, twisting, stretching, or kinking.
- Verify equipment compatibility, service requirements, connection sizes, and installation conditions before use.
Product Selection Considerations
Connection Type
Every B5 variant uses a 1/2" MIP connection x 1/2" FIP straight ball valve connection. Confirm both mating threaded connections before selecting the connector.
Connector Length
Choose from 12", 18", 24", 30", 36", 48", 60", or 72". Select a length that reaches the required connection points while allowing the connector to route naturally without unnecessary strain.
Review the Charman connector specification sheet for sizing and installation information, or use the uncoated connector catalog to compare connector configurations and available lengths.
Need Help Selecting a Connector?
The GetPipe.com team can help confirm your connector diameter, length, threaded connection sizes, valve configuration, equipment requirements, and installation conditions before you order.
Frequently Asked Questions
What outside diameter is this connector?
This connector family has a 1/2" outside diameter.
What connections does this connector use?
Every variant uses a 1/2" MIP connection and a 1/2" FIP straight ball valve connection.
What lengths are available?
Available lengths are 12", 18", 24", 30", 36", 48", 60", and 72".
How many variants are available?
Eight variants are available, with one variant for each connector length.
Does this connector include a ball valve?
Yes. The B5 configuration includes an integrated 1/2" FIP straight ball valve.
Are both threaded connections the same nominal size?
Yes. Both connections are 1/2", with a male thread on one end and a female threaded straight ball valve on the other.
How do I choose the correct connector length?
Choose a length that reaches both connection points while allowing the connector to route naturally without excessive stretching, twisting, or tight bends.
What should I confirm before ordering?
Confirm the 1/2" OD, 1/2" MIP and 1/2" FIP connection sizes, straight ball valve configuration, connector length, equipment requirements, and installation conditions.
Important Ordering & Installation Notes
- Eight connector lengths are available.
- All variants use 1/2" MIP x 1/2" FIP connections.
- The FIP end includes an integrated straight ball valve.
- Select a connector length that allows proper routing without stretching or kinking.
- Verify service requirements, equipment compatibility, connection sizes, and installation conditions before use.
