Description

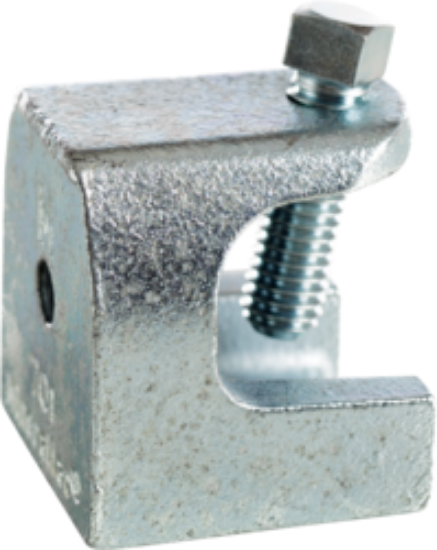

Beam Clamp - 70010
Set Screw Beam Clamp (Malleable Iron), Fits Up to 3/4" Flange, #10-24 Tapped Holes Bottom and Back of Beam Clamp, 1/4-20 X 1-1/4" Set Screw, Zinc Plated
| Brand Name | Minerallac |
| Sub Brand | Minerallac Traditional |
| Type | Beam Clamp |
| Special Features | Case hardened steel set screw tapped at an angle locks on beam. |
| Material | Malleable Iron |
| Finish | Zinc Plated |
| Clip Type | Flange Clamp |
| Length | 1.20" |
| Width | 1.38" |
| Color | Silver |
| Maximum Clamp Diameter | 3/4" |
| Flange Width | 3/4" |
| Rod Size | #10-24 |
| Static Load Limit (Bottom Hole Only) | 275 lbs |
| Application | For use with conduit hangers, bridle rings, and drop rods 3/8" to 1/2". |
| Size | 1.45" x 1.20" x 1.38" |
| Torque Rating | 40lbf-in. |
| Set Screw | 1/4"-20 |
Spec Sheet PDF
