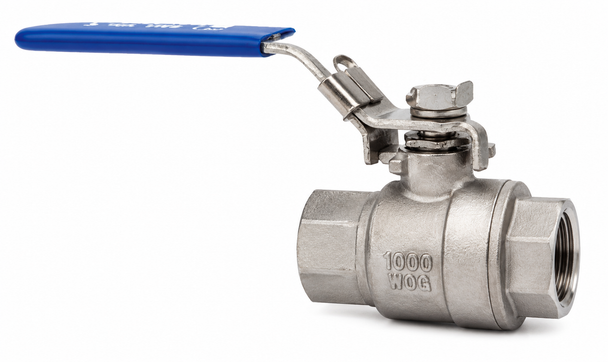

316 Stainless Steel Ball Valve, 1000 WOG, Locking Handle
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
316 Stainless Steel Ball Valve, 1000 WOG, Locking Handle
316 stainless steel ball valves with locking handles provide dependable quarter-turn shutoff for compatible water, oil, gas, industrial, process, mechanical, and general-purpose piping systems. Manufactured from CF8M 316 stainless steel with PTFE seals and seats, these threaded valves are designed for corrosion-resistant service in demanding environments.
The Charman stainless steel ball valve is rated for 1000 PSI W.O.G., features adjustable stem packing and a locking device, and is 100% leakage tested at 100 PSI air under water. Select the required valve size from the product options above.
Product Highlights
- CF8M 316 stainless steel construction
- Investment-cast valve body
- 1000 PSI W.O.G. working pressure
- Locking handle / locking device for controlled operation
- Pure PTFE seals and seats
- Adjustable stem packing
- Temperature range: -60°F to 450°F
- 100% leakage tested at 100 PSI air under water
- Hydrostatic test pressure: 1500 PSI
- Female threaded end connections
- Available online in sizes 1/4" through 2"
Technical Specifications
Locking Handle Design
The locking device helps secure the valve handle in the selected operating position, making this valve a practical choice where controlled shutoff and operating-position security are important. The quarter-turn handle provides quick visual indication of valve position and fast on/off operation.
316 Stainless Steel Construction
Corrosion-Resistant Body
CF8M stainless steel corresponds to 316 stainless steel and provides strong corrosion resistance for compatible industrial, process, water, oil, gas, and mechanical applications.
PTFE Seats & Seals
Pure PTFE seating and sealing components provide low-friction operation and dependable shutoff performance across the manufacturer's published temperature range.
Common Applications
Industrial & Process Piping
- Water, oil, and compatible gas service
- Industrial process piping
- Plant utility systems
- Equipment isolation and shutoff
- Maintenance and repair piping
Commercial & Mechanical
- Mechanical rooms
- Equipment connections
- Compressed-air systems where compatible
- General-purpose threaded piping
- Corrosive-environment applications where 316 stainless is suitable
Application suitability, media compatibility, pressure, temperature, codes, and system requirements must be verified by the purchaser, installer, or system designer before use.
Product Resources
Use the manufacturer documents below to review the product catalog, published specifications, dimensional information, and valve construction details.
Need Help Selecting a 316 Stainless Steel Ball Valve?
Our industrial PVF specialists can help confirm valve size, threaded connection requirements, pressure, temperature, media compatibility, and product availability.
Frequently Asked Questions
What does 1000 WOG mean?
WOG refers to water, oil, and gas service. Charman publishes a working pressure of 1000 PSI W.O.G. for this stainless steel ball valve.
What material is this ball valve made from?
The manufacturer specifies CF8M stainless steel, which is a cast 316 stainless steel material used for corrosion-resistant valve bodies.
Does the valve have a locking handle?
Yes. The manufacturer specification identifies a locking device that allows the lever handle to be secured in the selected operating position.
What are the seats and seals made from?
Charman specifies pure PTFE seals and seats.
What is the temperature range?
The published temperature range is -60°F to 450°F. Always verify the complete system and media are compatible with the intended operating conditions.
How is the valve pressure tested?
The manufacturer states that each valve is 100% leakage tested at 100 PSI air under water and has a hydrostatic test pressure of 1500 PSI.
What sizes are available on GetPipe.com?
This product is offered online in sizes from 1/4" through 2". Select the required size from the product options above.
Important Ordering Notes
- Verify valve size, pressure rating, media compatibility, temperature, and threaded connection requirements before ordering.
- Confirm 316 stainless steel and PTFE are suitable for the intended process media.
- Published pressure and temperature values are manufacturer specifications and should be evaluated together with actual system conditions.
- Selected variation determines the SKU, online price, shipping weight, and cost.
