304 Stainless Steel 150# Threaded Hex Bushing - SP114
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

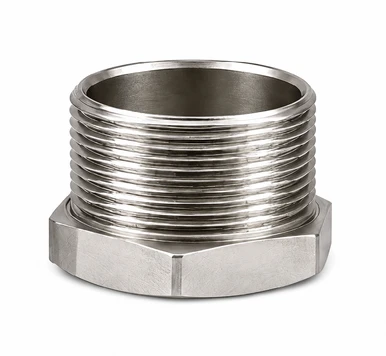

304 Stainless Steel 150# Threaded Hex Bushing - SP114
Charman 304 Stainless Steel SP114 Threaded Hex Bushings provide a compact threaded transition between different nominal pipe sizes. Manufactured from 304 stainless steel, these bushings feature a larger male threaded connection and a smaller female threaded connection for adapting compatible piping components without adding a separate reducer fitting.
The SP114 Hex Bushing family includes a broad range of size combinations from 1/4" x 1/8" through 4" x 3". Select the exact larger x smaller connection configuration required by the installation and confirm thread compatibility, material requirements, and system conditions before ordering.
Product Highlights
- SP114 hex bushing design
- 304 stainless steel construction
- Male x female threaded configuration
- Thirty-two size combinations available
- Designed to connect different nominal pipe sizes
- Available from 1/4" x 1/8" through 4" x 3"
- Compact hex body supports wrench engagement during installation
- Useful for plumbing, industrial, process, and general threaded piping systems
What Is an SP114 Threaded Hex Bushing?
A 304 stainless steel SP114 threaded hex bushing is a reducing fitting that transitions between two different threaded pipe sizes. The larger connection is male threaded, while the smaller opening is female threaded.
The hex-shaped body provides wrench flats that help installers tighten the fitting into a compatible female-threaded connection. This compact design can simplify piping transitions where a larger threaded opening needs to accept a smaller threaded component.
Why Choose a 304 Stainless Steel SP114 Threaded Hex Bushing?
304 Stainless Steel Construction
- Durable construction
- Corrosion-resistant material
- Designed for threaded piping
- Suitable for compatible piping systems
- Useful across plumbing and industrial applications
Compact Size Transition
- Hex body design
- Male x female threads
- Multiple reducing combinations
- Connects different nominal pipe sizes
- Provides a compact alternative to larger reducing assemblies
Common Applications
Plumbing & General Piping
- Piping repairs
- Size transitions
- Piping modifications
- Threaded connection changes
- General-purpose piping installations
Industrial & Process Use
- Equipment piping
- Maintenance work
- Process piping systems
- Industrial piping modifications
- Compatible stainless steel piping installations
Construction Details
304 Stainless Steel Body
- Solid fitting construction
- SP114 hex bushing configuration
- Designed for threaded size transitions
- Suitable for compatible threaded systems
- 304 stainless steel provides corrosion resistance for suitable applications
Male x Female Thread Design
- Hex wrenching surface
- Larger male threaded end
- Smaller female threaded opening
- Designed for reducing threaded connections
- Both mating thread sizes should be confirmed before installation
Available SP114 Hex Bushing Sizes
The 304 Stainless Steel 150# Threaded Hex Bushing - SP114 is offered in thirty-two size combinations ranging from 1/4" x 1/8" through 4" x 3". Each configuration has its own Charman part number for accurate selection and ordering.
Because every bushing uses two different nominal dimensions, always match both the larger male-thread size and the smaller female-thread size to the required piping layout before ordering.
How to Read the Hex Bushing Size
Larger Size
- Listed first
- Male threaded connection
- Threads into the larger fitting
- Determines the outside connection size
- Must match the receiving female-threaded component
Smaller Size
- Listed second
- Female threaded connection
- Accepts the smaller component
- Determines the reduced connection size
- Must match the smaller male-threaded component
Where a Charman SP114 Hex Bushing Makes Sense
- For threaded size transitions
- During piping repair or modification
- Where compact reducing connections are preferred
- Where 304 stainless steel construction is appropriate
- For compatible plumbing, industrial, and process piping systems
- When a larger female-threaded opening must connect to a smaller male-threaded component
Installation & Selection Considerations
- Confirm both required thread sizes before ordering.
- Match the larger male thread to the receiving connection.
- Inspect all threaded surfaces for damage or contamination.
- Use a thread-sealing method appropriate for the intended piping system.
- Verify pressure, temperature, media, material, and installation requirements before use.
Product Selection Considerations
Connection Combination
Select the 304 Stainless Steel 150# Threaded Hex Bushing - SP114 according to both required nominal sizes. The first dimension identifies the larger connection, while the second dimension identifies the smaller connection.
System Requirements
Confirm both mating threads, piping material, service media, pressure, temperature, installation method, and applicable system requirements before selecting a particular hex bushing.
Review the Charman Inc stainless steel fittings specification sheet for product and dimensional information on the SP114 threaded hex bushing, or use the complete stainless steel fittings catalog to compare available fitting styles, configurations, and sizes before ordering.
Need Help Selecting a Stainless Steel Pipe Fitting?
Our industrial PVF specialists can help review your pipe size, connection type, stainless steel requirements, application, and installation conditions before you order.
Frequently Asked Questions
What material is the SP114 Hex Bushing?
Charman identifies this product family as a 304 stainless steel fitting.
How many configurations are available?
This listing includes thirty-two Charman SP114 Hex Bushing size combinations.
What does a threaded hex bushing do?
A threaded hex bushing transitions from a larger threaded connection to a smaller threaded connection in a compact fitting body.
Which side of the bushing is male threaded?
The larger listed connection is the male threaded connection, while the smaller listed connection is the female threaded opening.
Why does the fitting have a hex-shaped body?
The hex body provides wrench flats that help with tightening and installation into a compatible threaded connection.
Are all of these fittings part of the same SP114 family?
Yes. Charman identifies all listed configurations as 304 Stainless Steel Fitting SP114 Hex Bushings.
Where can I review Charman stainless steel fitting information?
The Charman Stainless Steel Fittings Spec Sheet and Complete Catalog are linked directly above for additional product and fitting information.
What should I confirm before ordering?
Confirm both connection sizes, thread compatibility, material requirements, pressure, temperature, media, and installation conditions before ordering.
Important Ordering & Installation Notes
- Thirty-two size combinations are available.
- Match both the larger and smaller thread sizes before ordering.
- Confirm male and female thread compatibility before installation.
- Review the supplied Charman documents for additional fitting information.
- Verify material, pressure, temperature, media, sealing, and installation requirements before service.
