150# Galvanized Malleable Iron Cross
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

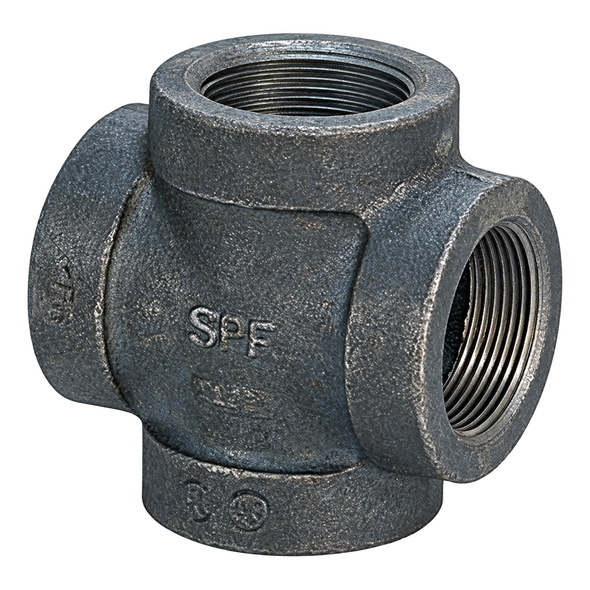

150# Galvanized Malleable Iron Cross
150# galvanized malleable iron crosses connect four equal-size male-threaded pipes, pipe nipples, valves, or compatible fittings at 90-degree angles. The four female NPT openings create a compact four-way branch connection for commercial, industrial, plumbing, maintenance, and repair applications where added corrosion resistance is desired.
Select the required nominal pipe size from the product options above. The selected variation determines the Charman item number, online selling price, weight, cost, and other size-specific product information.
Product Highlights
- 150# Class galvanized malleable iron construction
- Four equal-size female NPT threaded connections
- Four-way cross configuration with 90-degree outlets
- Galvanized finish provides added corrosion resistance
- Compatible with galvanized steel pipe and threaded pipe nipples
- Available in nominal pipe sizes from 1/8" through 4"
- Suitable for commercial, industrial, plumbing, maintenance, and repair applications
Technical Specifications
| Material | Galvanized Malleable Iron |
|---|---|
| Pressure Class | 150# / Class 150 |
| Connection | Four Female NPT Connections |
| Connection Sizes | Four Equal-Size Connections |
| Configuration | Four-Way Cross |
| Outlet Angles | 90 Degrees |
| Thread Standard | ASME B1.20.1 |
| Dimensional Standard | ANSI/ASME B16.3 |
| Finish | Galvanized |
| Fitting Type | Threaded Pipe Cross |
| Manufacturer | Charman Manufacturing |
| Available Sizes | 1/8" through 4" |
How a Galvanized Cross Works
A pipe cross has four female NPT openings arranged in a four-way pattern. Male-threaded pipe, nipples, valves, or compatible fittings thread into each opening, allowing one piping line to divide into three directions or multiple lines to combine at one central fitting.
Common Applications
Plumbing and Mechanical Systems
- Four-way branch piping
- Mechanical-room piping
- Galvanized steel pipe installations
- Water and utility distribution
- Equipment connections
- General repair and maintenance
Industrial and Utility Service
- Industrial process piping
- Compressed-air manifolds
- Outdoor and damp-location piping
- Oil and petroleum piping
- Equipment and skid piping
- Approved low-pressure steam service
Product Resources
Review the Charman product catalog, galvanized malleable iron specifications, and manufacturer warranty information before installation.
Need Help Selecting a Galvanized Malleable Iron Cross?
Our industrial PVF specialists can help confirm the required pipe size, pressure class, thread type, piping layout, service conditions, material compatibility, and product availability.
Frequently Asked Questions
What is a galvanized malleable iron cross used for?
A threaded pipe cross creates four equal-size connections at 90-degree angles for four-way branch piping, distribution manifolds, and equipment connections.
Does this cross have female threads on all four openings?
Yes. All four openings have female NPT threads designed for compatible male-threaded pipe, nipples, valves, or fittings.
Are all four connections the same size?
Yes. These are equal-size crosses. Select the required nominal pipe size from the product options above.
What pressure class is this fitting?
This galvanized malleable iron cross is manufactured as a 150# or Class 150 threaded fitting.
What sizes are available?
Available variations range from 1/8" through 4" nominal pipe size.
Can this cross be used with galvanized steel pipe nipples?
Yes. It is designed for compatible male NPT-threaded galvanized steel pipe, pipe nipples, valves, and approved threaded components.
Does the galvanized finish improve corrosion resistance?
Yes. The galvanized finish provides additional corrosion resistance compared with an unfinished black fitting, although suitability still depends on the environment, piping media, temperature, and application.
Can it be used for water, air, oil, gas, or steam?
It may be used in compatible water, compressed-air, oil, gas, steam, and general-service systems when the application remains within applicable pressure, temperature, media, code, and manufacturer requirements.
Should thread sealant be used?
Use an approved pipe-thread sealant or thread tape on each male NPT connection, selected for the piping media, pressure, temperature, applicable codes, and manufacturer recommendations.
Important Ordering Notes
- Select the required nominal pipe size before adding the product to your cart.
- The selected variation determines the Charman item number, price, weight, and cost.
- This is an equal-size cross with four female NPT connections.
- Confirm the nominal size and thread type of all mating components before ordering.
- Use an approved thread sealant suitable for the piping media and operating conditions.
- Do not overtighten the fitting, as excessive force can damage the threads or fitting body.
- Confirm pressure, temperature, media compatibility, corrosion exposure, and application requirements before installation.
- Support connected piping properly to avoid excessive mechanical stress on the cross.
- Installation should be completed by qualified personnel and comply with applicable codes and standards.
- Manufacturer warranty coverage is subject to the terms, limitations, and exclusions in the linked warranty document.
