Class 150 Black Threaded Pipe Plugs

(No reviews yet) Write a Review
SKU:
3110-3112
Availability:
Usually Ships Same Day
Weight:
0.00 LBS
*Images are for visual reference only.

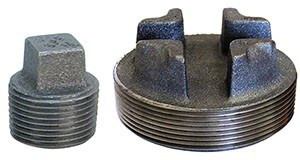

  • Black malleable iron threaded pipe plugs, Figure 3110 / 3111 / 3112, Class 150 with male npt threads
  • Black malleable iron threaded pipe plugs, Figure 3110 / 3111 / 3112, Class 150 showing male npt threads and plug head styles
$0.96 - $44.53

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

ASC Engineered Solutions

Pipe Joining Systems

Class 150 Black Threaded Pipe Plugs

SCI / ASC Engineered Solutions • Threaded Pipe Fittings

Close a compatible female threaded opening with a male pipe plug. Confirm the head style associated with the selected SKU.

Product details / technical specifications

ManufacturerSCI / ASC Engineered Solutions
Figure3110 / 3111 / 3112
MaterialMalleable iron (ASTM A197)
FinishBlack
ConnectionMale NPT
Pressure classClass 150; allowable pressure depends on temperature and service
Thread standardASME B1.20.1 NPT
Dimensional standardASME B16.14
Size selectionSelect the available nominal pipe size or complete size combination above
Dimensions / unit weightSize-specific; see the matching manufacturer table linked below

Choose the right connection

Match the nominal size and the head style of the selected SKU. The manufacturer submittal covers several plug figures; the picture is a family reference.

Technical documents / view or print

Open the product table to review size-specific dimensions and weights. PDF links open in a new tab and can be printed from your PDF viewer.

View / Print Figure 3110 / 3111 / 3112 Submittal (PDF) ↗View Product Catalog Page (PDF) ↗Material / Thread Specifications (PDF) ↗Material Compliance Certificate (PDF) ↗

Frequently asked questions

How do I choose the right connection?
Match the nominal size and the head style of the selected SKU. The manufacturer submittal covers several plug figures; the picture is a family reference.
Where are the dimensions and weight?
Use the manufacturer table for the selected nominal size. Dimensions and unit weight vary by size; the image is a product-family reference.
Can I use this for any fluid or service?
Confirm material compatibility, thread arrangement, service conditions and the applicable manufacturer rating before selecting the fitting.
Does Class 150 mean 150 PSI in every application?
No. Pressure class is not one universal working-pressure limit. Allowable pressure depends on temperature, size, material and service; use the applicable manufacturer rating.

Before you order

Match the nominal size and the head style of the selected SKU. The manufacturer submittal covers several plug figures; the picture is a family reference. Confirm the complete size selection, thread compatibility, operating temperature and required service rating.

Manufacturer SKU and packaging reference

Carton quantities are manufacturer packaging references, not an order minimum. Use the linked manufacturer documentation for technical dimensions.

SKUSizeFigureUPCCarton qtyManufacturer description
08189014981/431106902919642441501/4 BLK IMI SOLID SQ HD PLUG
08189015303/831106902919642511003/8 BLK IMI SOLID SQ HD PLUG
08189023711/23111690291964268501/2 BLK IMI CORED SQ HD PLUG
08189024053/43111690291879227303/4 BLK IMI CORED SQ HD PLUG
081890244713111690291879234201 BLK IMI CORED SQ HD PLUG
08189024881 1/431116902918792414011/4 BLK IMI CORED SQ HD PLUG
08189025381 1/231116902918792583011/2 BLK IMI CORED SQ HD PLUG
081890257923111690291879265202 BLK IMI CORED SQ HD PLUG
08189026112 1/231116902918792721621/2 BLK IMI CORED SQ HD PLUG
081890264533111690291879289163 BLK IMI CORED SQ HD PLUG
08189027284311169029187929664 BLK IMI CORED BAR PLUG
08189032886311269029196427536 BLK IMI CORED BAR PLUG

Need help choosing a fitting? Ask the GetPipe team or call 1-800-410-4625.
